Fluke | Digital Multimeter

Fluke 115 Field Technicians Digital Multimeter

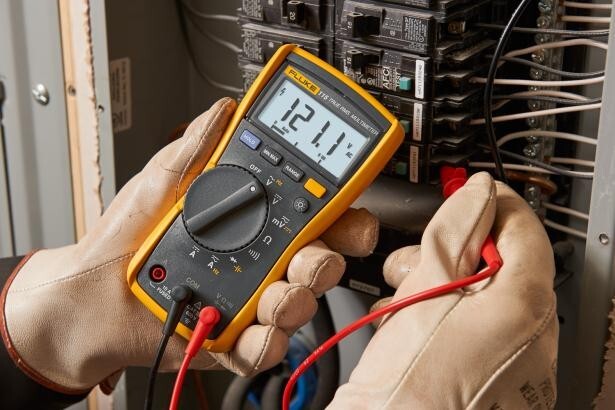

The Fluke 115 Field Technicians Digital Multimeter is a compact and rugged True-RMS digital multimeter designed for field service technicians. It offers accurate measurements of AC/DC voltage and current, resistance, capacitance, frequency, and continuity, making it ideal for a wide range of electrical and electronic testing applications..

  • Detail
  • Special Features
  • Specification

The Fluke 115 is engineered to meet the demanding needs of field service technicians. Its True-RMS capability ensures accurate measurements even for distorted waveforms, making it suitable for troubleshooting complex electrical systems. The compact design allows for easy transport and use in tight spaces, while the backlit display ensures readability in various lighting conditions. With features like Min/Max/Average recording, the Fluke 115 aids in capturing and analyzing signal fluctuations, enhancing diagnostic capabilities.

  • True-RMS Measurement: Ensures accurate readings for non-linear loads.

  • Compact Design: Ergonomic and lightweight for easy one-handed operation.

  • Backlit Display: Large white LED display for visibility in low-light conditions.

  • Min/Max/Average Recording: Captures signal fluctuations over time.

  • Overload Protection: 20 A overload for 30 seconds, 10 A continuous.

  • Safety Rated: CAT III 600 V for protection against electrical hazards.

Category Specification
AC Voltage (True RMS) 600.0 mV to 600.0 V
DC Voltage 600.0 mV to 600.0 V
AC Current (True RMS) 6.000 A to 10.00 A (20 A overload for 30 seconds max)
DC Current 6.000 A to 10.00 A (20 A overload for 30 seconds max)
Resistance 600.0 Ω to 40.00 MΩ
Capacitance 1000 nF to 9999 µF
Frequency 99.99 Hz to 50.00 kHz
Diode Test 2.00 V
Continuity Audible beep for resistance < 20 Ω
Display Digital: 6,000 counts, updates 4 per second
Bar Graph 33 segments, updates 32 per second
Backlight Large white LED for visibility in low-light conditions
Battery 9V Alkaline (IEC 6LR61), 400 hours typical (without backlight)
Operating Temperature -10°C to +50°C
Storage Temperature -40°C to +60°C
Dimensions 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight 550 g
Safety Rating CAT III 600 V
